FPV DRONES AI tracking inertial navigation

Enhanced Environmental Adaptability

GPS-Independent Operation: The Inertial Navigation System (INS) utilizes gyroscopes and accelerometers to autonomously calculate position and orientation, enabling reliable navigation in GPS-denied environments (e.g., indoors, tunnels, dense forests).

Robust Performance in Dynamic Environments: Fusion of AI vision and INS ensures stable tracking and obstacle avoidance in cluttered or rapidly changing scenarios (e.g., high-speed vehicle pursuit).

High-Precision Autonomous Tracking

AI-Driven Object Recognition: Deep learning algorithms enable real-time identification and locking of specific targets (e.g., humans wearing identifiable markers), minimizing target loss or false tracking.

Millisecond-Level Responsiveness: INS provides ultra-low-latency attitude and motion data, allowing the AI to dynamically adjust flight trajectories in response to abrupt target movements (e.g., sharp turns or acceleration).

Category:

Product description

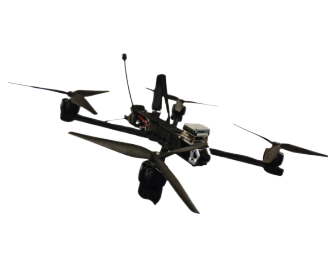

An AI-integrated inertial navigation tracking FPV drone is a high-performance FPV (First-Person View) unmanned aerial vehicle that combines Artificial Intelligence (AI)-powered target tracking technology with an Inertial Navigation System (INS). Its core functionality lies in utilizing AI algorithms to achieve real-time recognition and autonomous tracking of dynamic targets (e.g., humans, vehicles), while relying on inertial navigation to maintain stable flight and precise positioning in complex environments—even in GPS-denied scenarios.

This system enables seamless operation in challenging conditions (indoor spaces, dense forests, or high-speed pursuits) by fusing AI-driven visual perception with INS-generated motion data, ensuring both agility and reliability.

Product Specification

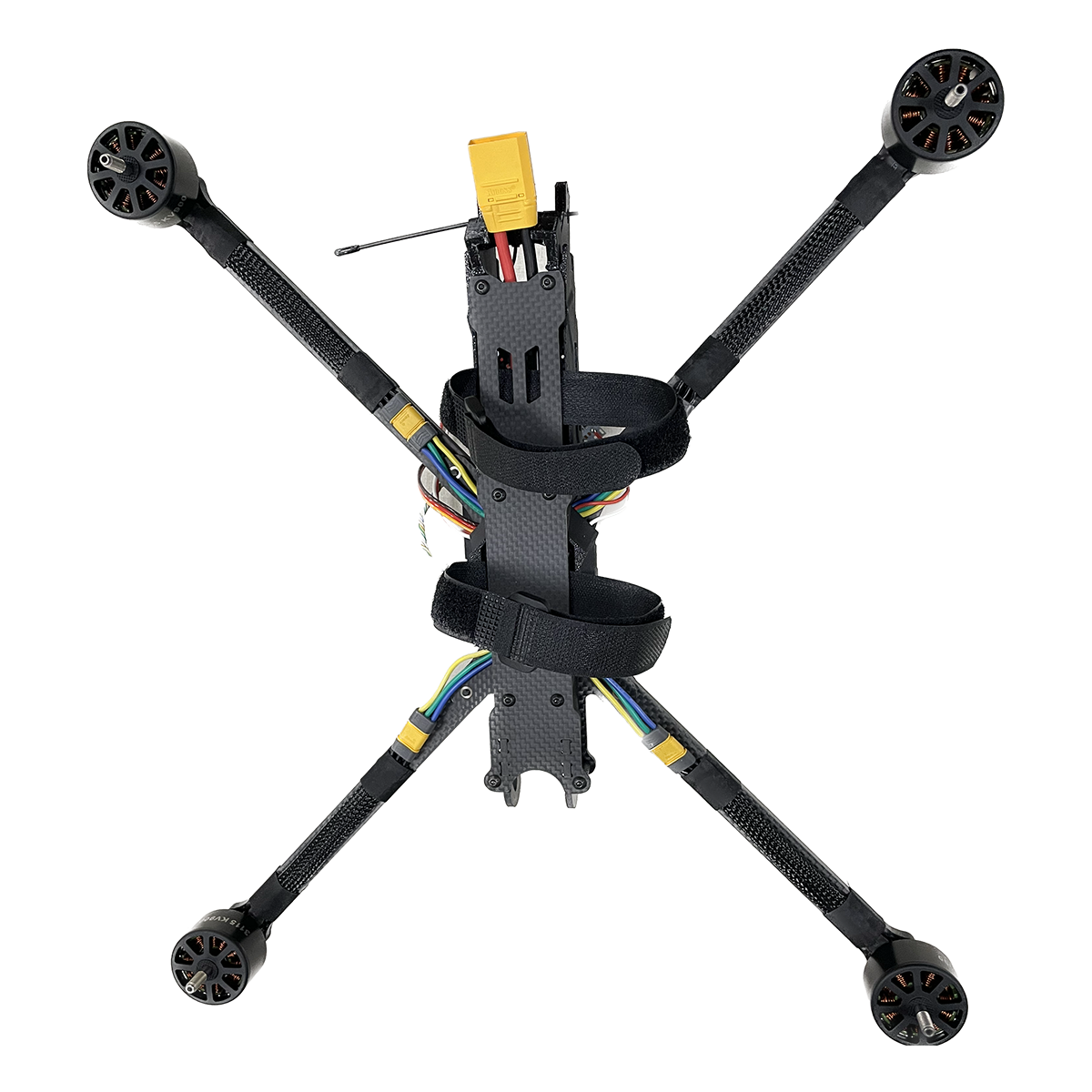

AI tracking inertial navigation FPV10 inch

Rack: 10 inches

Flight Control: F405

Electric tuning: Four in one 65A

Image transmission: 5.8G 3W

Camera: Low light night vision tracking camera (6mm lens; N/p adjustable; Input voltage: DC 5-40V,Resolution: 1200 lines Field of view: 135 °

Motor: 3115 900KV

Propeller: 1050

Receiver: ELRS 915 MHz

Antenna: RHCP SMA

Battery compatibility: 6S 75C 8500mAh

Test data:

Maximum flight speed: 140 km/h

Idle battery life: about 35 minutes

Payload: 4KG Locked tracking distance: 800 meters
