EVO Lite Dual Specification 3TA

EVO Lite Dual Specification 3TA

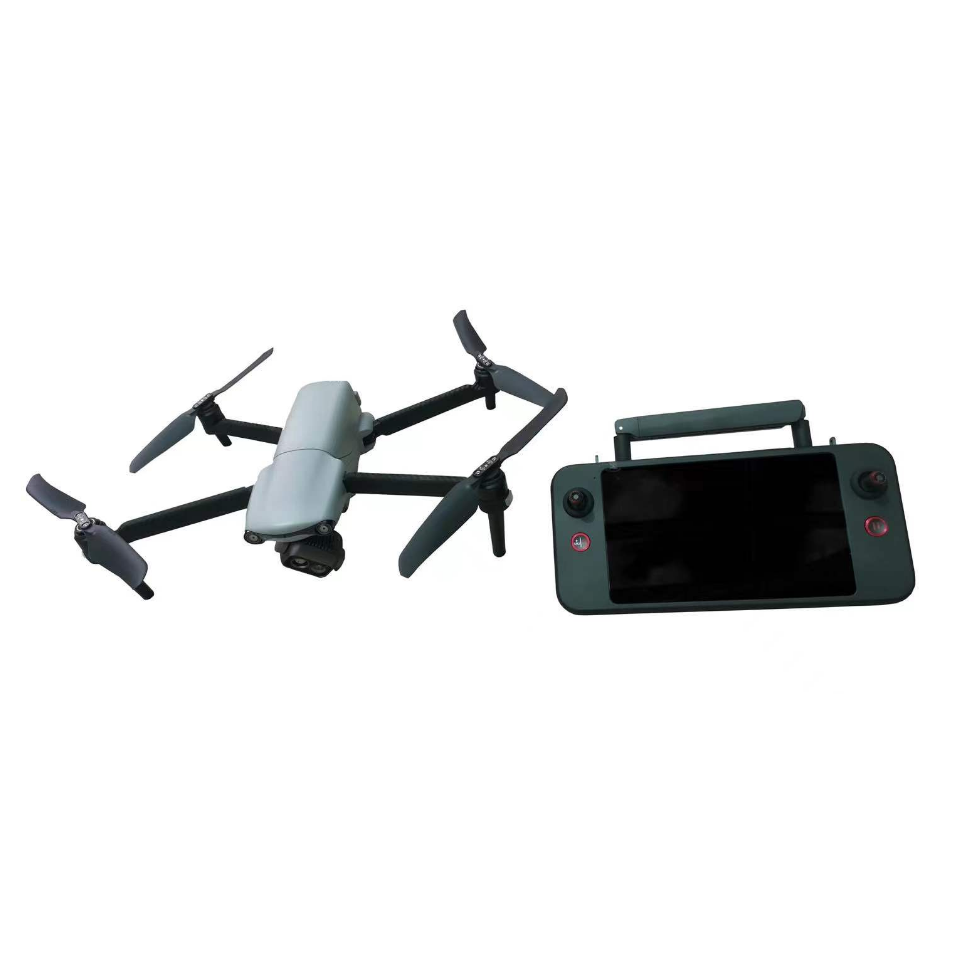

The EVO Lite Enterprise Series, by Autel Robotics, offers multiple advantages such as a lightweight and portable design, rapid deployment, and simple control for industrial applications. The AI target recognition feature enables the aircraft to easily identify and map various target objects automatically. The three-way binocular vision obstacle avoidance provides a safe flying experience. The EVO Lite 640T Enterprise features a dual gimbal system, with a visible-light camera providing clear and detailed images, while the thermal-imaging camera aids in decision-making during operations. The EVO Lite 6K Enterprise is equipped with a 1-inch CMOS visible-light camera, offering outstanding sensitivity for excellent image quality. Paired with the Autel Enterprise professional flight software, it offers easy operation, user-friendly interaction, flexible single-person deployment, and efficient application in scenarios such as public safety and emergency rescue.

Category:
AircraftTakeoff weight835g
Dimensions (including blades)Folded: 210×123×95mm
Unfolded: 427×384×95mm
Wheelbase368mm
Max ascent speed5m/s (sport), 4m/s (standard), 3m/s (smooth)
Max descent speed4m/s (sport), 3m/s (standard), 2m/s (smooth)
Max level flight speed(no wind, near sea level)18m/s (sport), 10m/s (standard), 5m/s (smooth)
Max takeoff altitude4000m
Max flight time (no wind)40min
Max hovering time (no wind)38min
Max  flight distance (no wind)24km
Max wind resistanceLevel 7
Max tilt angle33°(sport), 25°(standard), 25°(smooth)
Max angular velocity200°(sport), 120°(standard), 60°(smooth)
Operating temperature0°C ~ 40°C
Operating frequency2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz
Transmission power (EIRP)FCC:≤30dBm；CE:≤20dBm
GNSSGPS, GLONASS, Galileo
Hovering accuracyVertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);
Gimbal (Lite)Mechanical rangePitch: -135°~45°
Roll: -45°~45°
Yaw: -90°~90°
Rotate: -400°~400°
Controllable rangePitch: -90°~30°
Yaw: -80°~80°
Rotate: -360°~360°
Stabilization4-axis,(horizontal/vertical/tilt/rotation shooting)
Max control speed (pitch)30°/s
Angular vibration range±0.003°
Gimbal (Lite+)Mechanical rangePitch: -135°~45°
Roll: -45°~45°
Yaw: -90°~90°
Controllable rangePitch: -90°~ +30°
Yaw: -80°~ +80°
Stabilization3-axis
Max control speed (pitch)30°/s
Angular vibration range±0.003°
Sensing systemForwardAccurate measurement range: 0.5~18m
Effective sensing speed: <12m/s
FOV: horizontal <70°, vertical <88°
BackwardAccurate measurement range: 0.5~18m
Effective sensing speed: <12m/s
FOV: horizontal <40°, vertical <30°
DownwardAccurate measurement range: 0.5~22m
Visual hovering range: 0.5~40m
FOV: horizontal <40°, vertical <30°
Operating environmentForward, backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)
Camera
(Thermal)		SensorUncooled VOx Microbolometer
LensFOV H33°V26°
Focal length 13mm
Zoom1 – 16x
Pixel size12μm
Wavelength range8 – 14μm
Temperature rangeHigh gain mode: -20° to +150°
Low gain mode: 0° to +550°
Temperature measurement accuracy±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃
Accurate temperature
measurement distance		2-20 meters
Video resolution640×512@30fps
Video formatMOV / MP4 (Support H.264/H.265)
Camera resolutionInfrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720
Photo modeSingle shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
Photo formatJPG (with irg file)
Camera
(Lite)		SensorCMOS: 1 inch
Effective pixels: 20M
Pixel size: 2.4μm*2.4μm
LensFOV: 82°
Equivalent focal length: 29mm
Aperture: f/2.8 ~ f11
Focus range: 0.5m ~ ∞
Focus mode: CDAF/MF
Shooting modeAutomatic mode (P gear): EV is adjustable, Shutter/Aperture is not adjustable, ISO is automatic or adjustable.
Manual mode (M gear): ISO/Shutter/Aperture is adjustable, EV is not adjustable.
Shutter priority (S file): Shutter/EV adjustable, Aperture automatic, ISO automatic or adjustable.
Aperture priority (A gear): Aperture/EV adjustable, Shutter automatic, ISO automatic or adjustable.
ISO rangeVideo: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night scene mode: ISO up to 64000
Shutter speedPhoto mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates
Portrait blurReal-time image transmission portrait blur and photo portrait blur
Defog modeSupport
Zoom rangeDigital zoom: 1 ~ 16 times
Lossless zoom: 4K: 1.3 times; 1080p: 3 times
Note:
6K: Digital zoom
4K: more than 1.3 times the digital, the following is lossless
1080P: more than 3 times the digital, the following is lossless
Photo formatJPG（8bit） / DNG(12bit) / JPG+DNG
Photo resolution5472×3648 (3:2，default)
5472×3076 (16:9)
3840×2160 (16:9)
Photo shooting modeSingle shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/…/60s (DNG minimum 5s)
HDR imaging: 5472×3648/3840×2160
Night shot: 5472×3648/3840×2160
Video coding formatH265/H264
Video resolution5472×3076 p30/25/24
3840×2160 p60/50/48/30/25/24
2720×1528 p60/50/48/30/25/24
1920×1080 p120/60/50/48/30/25/24
HDR:
3840×2160 p30/25/24
2720×1528 p60/50/48/30/25/24
1920×1080 p60/50/48/30/25/24
Max bitrate120Mbps
TimelapseOriginal image：5472*3076/3840*2160，JPG/DNG
Video：5.4K/4K P25
PanoramaHorizontal/Vertical/Wide-angle/Spherical
Original image: 5472*3648, JPG/DNG
Supported file systemFat32、exFat
Video formatMP4/MOV
WIFI transfer20MB/s
Remote control & image transmissionOperating frequency2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz
Max transmission distance (unobstructed, free of interference)FCC：12km；CE：6km
Operating temperature0°C ~ 40°C
Transmission power (EIRP)FCC:≤30dBm；CE:≤20dBm
Battery capacity3930mAh
Max battery life~ 2.5h (when charging a mobile phone)
~ 3.5h (when not charging mobile phone)
Interface typeType C
Transmission systemAutel SkyLink
Realtime transmission qualityTransmission distance<1km：2.7K 30fps
Transmission distance>1km：1080P 30fps
Transmission bitrate90Mbps
Transmission delay≤200ms
AdapterInput100-240V/50-60HZ
Output12.75V⎓5A
Rated power63.75W
Aircraft batterycapacity6175mAh
Voltage11.13V
Max charging voltage12.75V
Battery TypeLi-Po 3S
Energy68.7Wh
Charging temperature5~45℃
Single battery charging time90min
Max charging power78W
AppMobile AppAutel Sky
Mobile system requirediOS 13.0 and above
Android 6.0 and above
StorageBuilt-in storage6GB
SD storagemax. support 256GB（UHS-3 rating required）
