Lightweight and Portable
The EVO Lite Enterprise Series aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.
Autel Enterprise App
Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of the EVO Lite Enterprise Series aircraft.

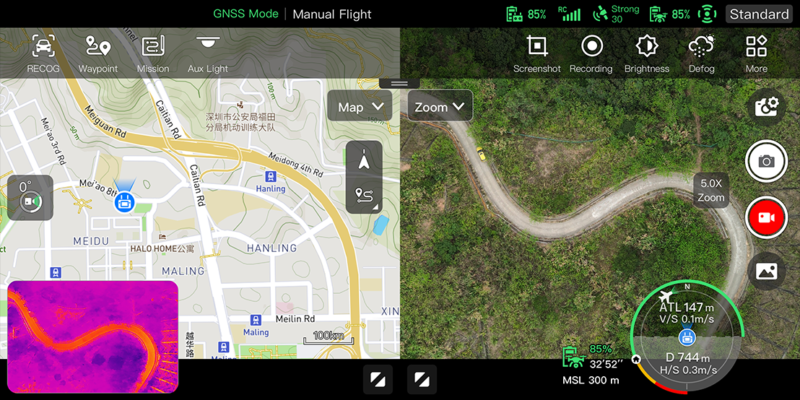

Split-Screen Display
Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.

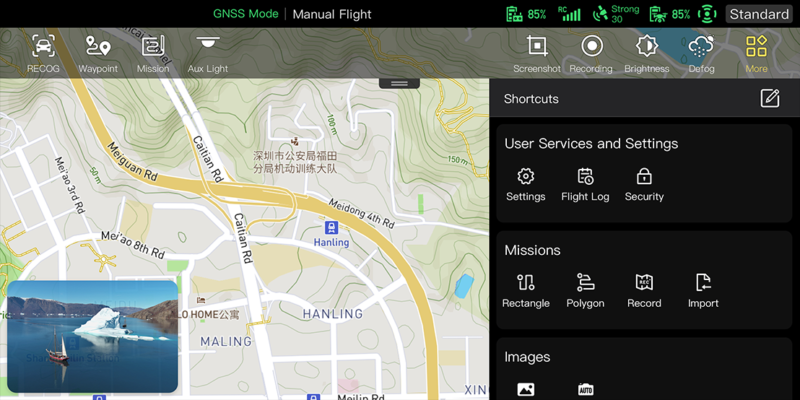

Customizable Toolbar
Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.

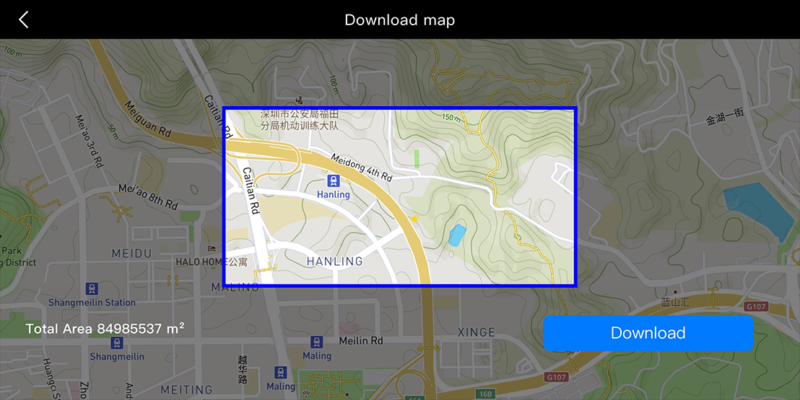

Offline Maps
Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

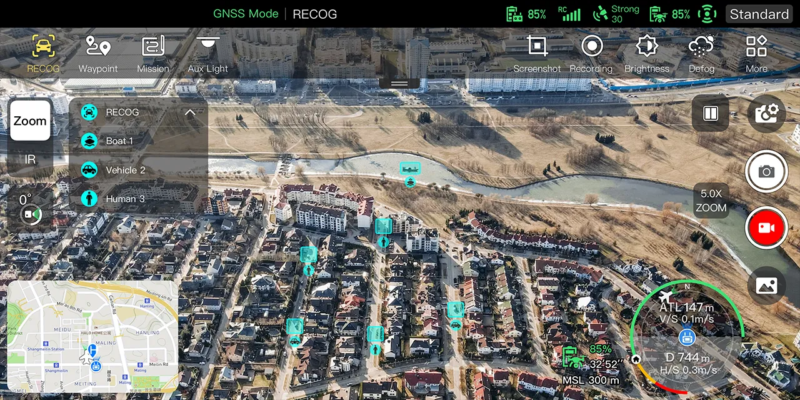

AI Target Recognition and Positioning
Utilizing wide-angle or infrared lenses combined with intelligent AI algorithms and a self-learning system, the aircraft can automatically recognize and locate, including people, cars, and boats, projecting their positions on the map.
| Modules | type | Double Fly | |

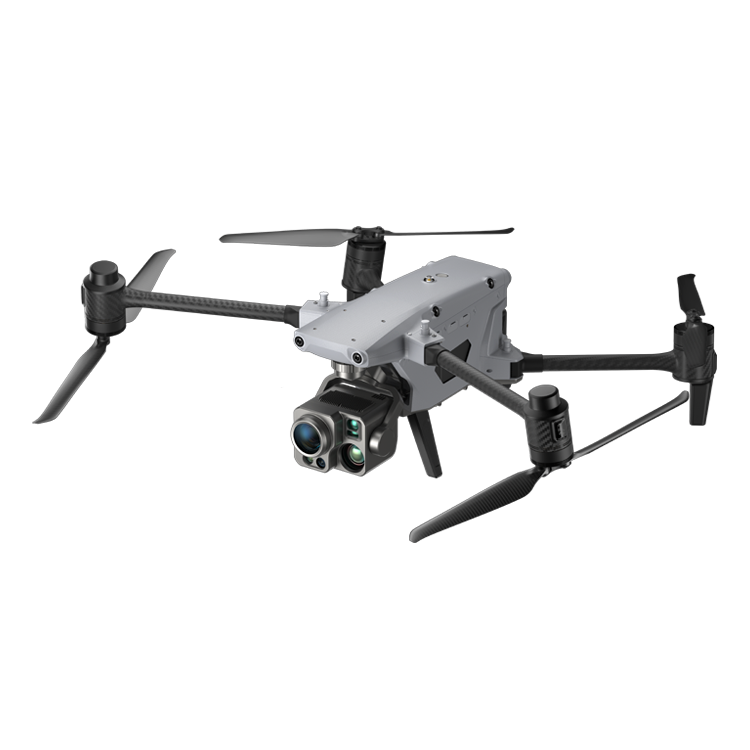

| product | EVO Lite 640T Industry Edition | ||
| Aircraft | Aircraft | Aircraft weight | 866 g |
| Maximum take-off weight | 866 g | ||
| Body size | 210×123×95mm(fold) 433×516×95mm(Expand) | ||
| Wheelbase | 368mm | ||
| Maximum propeller speed | 8000 RPM | ||
| Maximum ascent speed | Low gear：2.5 m/s Comfort：3 m/s Standard File：4 m/s Furious：5 m/s | ||
| Maximum descent speed | Low gear：2.5 m/s Comfort：2 m/s Standard File：3 m/s Furious：4 m/s | ||
| Maximum horizontal flight speed (no wind near sea level) | Low gear：2.5m/s Comfort：5 m/s Standard File：10 m/s Furious：18 m/s | ||
| Maximum permitted flight altitude | 2000 m | ||
| Maximum flight altitude | 800 Meters (App height limit) | ||
| Maximum flight time (no wind) | 40minute | ||
| Maximum cruising range (no wind) | 24 kilometer | ||
| Maximum hovering time (no wind) | 38 minute | ||
| Maximum wind resistance level | Level 5 wind | ||
| Maximum tilt angle | Low gear：15° Comfort：30° Standard File：30° Furious：33° | ||
| Maximum rotation angular velocity | Comfort：60°/Second Standard File：120°/Second Furious：200°/Second | ||
| Operating temperature | 0℃ ~ +40℃ | ||
| Hot swap battery | Not supported | ||
| Built-in storage | Onboard storage: 6GB (up to 256GB microSD card supported) | ||
| Wi-Fi operating frequency | 2.4G: 2.400 – 2.4835GHz* 5.1G: 5.15 – 5.25GHz** 5.8G: 5.725 – 5.829GHz***, 5.725 – 5.850GHz *Only available in MIC certified areas **Only available in FCC and MIC certified areas ***Only available in SRRC certified areas Note: Some frequencies are only available in some areas or are limited to indoor use. Please refer to local laws and regulations for details. | ||
| Wi-Fi Effective Isotropic Radiated Power (EIRP) | 2.4G：≤12.14dBm（MIC） 5.1G：≤30dBm（FCC）；≤10mW（MIC） 5.8G：≤30dBm（FCC/ISED/RCM/SRRC）；≤14dBm（CE） | ||
| Wi-Fi Fast Transfer | 20MB/sec | ||
| GNSS | GPS/BDS/GLONASS | ||
| Hovering accuracy | Vertical: ±0.1m (when visual positioning works normally) ±0.5m (when GNSS works normally) Horizontal: ±0.3m (when visual positioning works normally) ±1.5m (when GNSS works normally) | ||
| Image transmission | Operating frequency | 2.4G: 2.400 – 2.476GHz*; 2.400 – 2.4835GHz 5.1G: 5.15 – 5.25GHz** 5.7G: 5.65 – 5.755GHz*** 5.8G: 5.725 – 5.829GHz*; 5.725 – 5.850GHz *Only for SRRC certified areas **Only for FCC certified areas ***Only for MIC certified areas Note: Some frequencies are only available in some areas or for indoor use only. Please refer to local laws and regulations for details. | |
| Maximum signal effective distance (no interference, no obstruction) | FCC: 12 km CE: 6 km | ||
| Effective isotropic radiated power (EIRP) | 2.4G：≤30dBm（FCC）；≤20dBm（CE/SRRC） 5.1G：≤30dBm（FCC） 5.7G：≤30dBm（MIC） 5.8G：≤30dBm（FCC/SRRC）；≤14dBm（CE） | ||
| Visual perception system | Perception range | Front: 0.5~18 meters, effective obstacle avoidance speed: <12 meters/second Back: 0.5~18 meters, effective obstacle avoidance speed: <12 meters/second Down: 0.5~22 meters, visual hovering range: 0.5~40 meters | |
| FOV | Front: 70° horizontal, 88° vertical Rear: 40° horizontal, 30° vertical Bottom: 40° horizontal, 30° vertical | ||
| Effective use environment | Front and back: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment). Bottom: The ground has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment), the surface is a diffuse reflection material with a reflectivity of >20% (such as walls, trees, people, etc.). | ||
| PTZ Camera | Wide-angle camera | Image Sensor | 1/2-inch CMOS, 48 megapixels |
| Lenses | DFOV: 83.4° Focal length: 25.6mm Aperture: f/2.8 Focus distance: 1.5m ~ ∞ Focus mode: FF (fixed focus) | ||
| ISO range | Auto mode: ISO100 ~ ISO6400 Manual mode: Video: ISO100 ~ ISO6400 Photo: ISO100 ~ ISO6400 Night mode: ISO100 ~ ISO320000 | ||
| Shutter speed | Photo mode: 1/8000 ~ 0.5 sec Video mode: 1/8000 ~ 1/30 sec | ||
| Fog and haze removal | support | ||
| Zoom | Digital zoom: 1 ~ 16 times | ||
| Maximum photo size | 8000×6000（4:3） 4000×3000（4:3） | ||
| Photo format | JPG | ||
| Photo shooting mode | Single shot | ||
| Video resolution | 3840×2160 P30 1920×1080 P30 | ||
| Video format | MP4/MOV | ||
| Video encoding format | H.264/H.265 | ||
| Maximum video bitrate | 100Mbps | ||
| Supported file system | FAT32/exFAT | ||
| Infrared thermal imaging camera | Image sensor | Uncooled Vanadium Oxide Focal Plane | |
| Lens | FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focus distance: 2.2 m ~ ∞ | ||
| Sensitivity | ≤50mK@f/1.0，25℃ | ||
| Pixel spacing | 12um | ||
| Wavelength range | 8 – 14um | ||
| Temperature measurement method | Center temperature measurement/point temperature measurement/single rectangular frame temperature measurement | ||
| Temperature measurement range | -20℃ ~ +150℃ (high gain mode); 0℃ ~ +550℃ (low gain mode) | ||
| Temperature measurement accuracy | ±2℃ or ±2% of reading (whichever is greater) @ ambient temperature -20℃ ~ +60℃ | ||
| Precise temperature measurement distance | 1 ~ 25 meters | ||
| Zoom | 16x digital zoom | ||
| High temperature warning | High and low temperature alarm thresholds, reporting coordinates and temperature values | ||
| Color palette | White heat/black heat/scorching heat/rainbow/grayscale/iron red/cold and hot | ||
| Photo size | 640×512 | ||
| Photo format | JPG (with temperature information, dedicated SDK and PC tool analysis) | ||
| Photo shooting mode | Automatic | ||
| Video resolution | 640×512@30FPS | ||
| Video format | MP4 | ||
| PTZ | Mechanical range | Pitch: -135° to +45° Roll: -50° to +50° Heading: -90° to +90° | |
| Controllable rotation range | Pitch: -90° to +30° | ||
| Stabilization system | Three-axis stabilization | ||
| Maximum control speed (pitch) | 100°/sec | ||
| Angular jitter | ±0.003° | ||

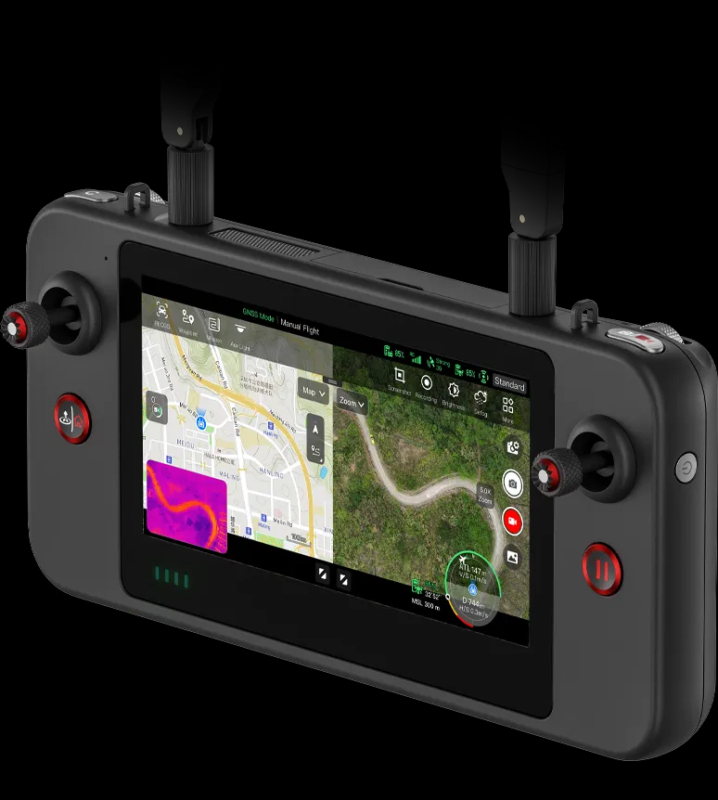

| Remote Control | Remote Control | Remote control model | Autel Smart Remote Controller SE V2 |
| Screen size | 6.0 inches | ||
| Material | PC+ABS | ||
| Dimensions | 226.3×137.7×31.5 mm (antenna folded) 226.3×215.4×31.5 mm (antenna unfolded) | ||
| Weight | 607 g | ||
| Operating temperature | -10℃ ~ +40℃ | ||
| Storage temperature | +15℃ ~ +25℃ (within one year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within one month) | ||
| Protection level | IP43 | ||
| Built-in storage | 24GB | ||
| MicroSD expansion | Support | ||
| Operating system | Based on Android 6.0.1 | ||
| Application installation | Supports installation of third-party Android apps | ||
| USB -C | Supports PD/QC fast charging, maximum 65W | ||
| USB -A | USB2.0 | ||
| GNSS | GPS+Galileo+BeiDou+GLONASS | ||
| Wi-Fi standard | 802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi | ||
| Wi-Fi operating frequency | 2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835GHz 5.1G: 5.15 – 5.25GHz** 5.8G: 5.725 – 5.829GHz*, 5.725 – 5.850GHz *Only applicable to SRRC certified areas **Only applicable to MIC certified areas Note: Some frequencies are only available in some areas or are limited to indoor use. Please refer to local laws and regulations for details. | ||
| Wi-Fi Effective isotropic radiated power (EIRP) | 2.4G：≤30dBm（FCC）；≤20dBm（CE/SRRC） 5.1G：≤10mW（MIC） 5.8G：≤30dBm（FCC/SRRC）；≤14dBm（CE） | ||
| Bluetooth standard | Bluetooth 5.0 | ||
| Bluetooth operating frequency | 2.400 – 2.4835GHz Note: Some regions have designated frequency ranges. Please refer to local laws and regulations for details. | ||
| Bluetooth effective isotropic radiated power (EIRP) | ≤20dBm（SRRC/CE）；≤21dBm (FCC） | ||
| Image transmission | Antenna | Dual antenna, 1T2R | |
| Operating frequency | 900M: 902 – 928MHz* 2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835GHz 5.7G: 5.65 – 5.755GHz*** 5.8G: 5.725 – 5.829GHz**, 5.725 – 5.850GHz *Only applicable to FCC certified areas **Only applicable to SRRC certified areas ***Only applicable to MIC certified areas Note: Some frequencies are only available in some areas or are limited to indoor use. Please refer to local laws and regulations for details. | ||
| Effective isotropic radiated power (EIRP) | 900M：≤30dBm（FCC） 2.4G：≤30dBm（FCC）；≤20dBm（CE/SRRC）；≤12.14dBm（MIC） 5.7G：≤30dBm（MIC） 5.8G：≤30dBm（FCC/SRRC）；≤14dBm（CE） | ||
| Maximum signal effective distance (no interference, no obstruction) | FCC: 15 km CE/SRRC: 8 km | ||
| Display | Resolution | 1440×720 | |
| Refresh rate | 60Hz | ||
| Touch | Supports 10-point touch | ||
| Battery | Battery type | Li-Po | |
| Rated capacity | 1900mAh | ||
| Nominal voltage | 7.7V | ||
| Battery energy | 14.63Wh | ||
| Charging time | About 90 minutes | ||
| Battery life | 2 hours (maximum brightness) 3.0 hours (50% brightness) | ||
| Battery replacement | Supports | ||
| Smart Battery | Intelligent Flight Battery | Working environment temperature | 0~+45℃ |
| Battery type | LiPo 3S | ||
| Rated capacity | 6175mAh | ||
| Battery energy | 68.7Wh | ||
| Nominal voltage | 11.13V | ||
| Charging limit voltage | 12.75V | ||
| Rated charging power | 63.75W | ||
| Maximum charging power | 78W | ||
| Weight | 309 grams | ||
| Battery charging temperature | +5℃-+45℃ (When the battery temperature is below 5℃, the battery stops charging; when the battery temperature is above 45℃, the battery stops charging) | ||
| Battery Storage | Ideal storage environment | +22℃~+28℃ | |
| Storage temperature and humidity | -10℃~+30℃，65±20%RH | ||
| Battery Charger | Power input | 100-240V~ 50/60Hz，1.5A | |
| Output port | Battery charging port/USB-A | ||
| Battery charging interface | 12.75V⎓5A | ||
| USB charging interface | 5V⎓3A，9V⎓2A，12V⎓1.5A | ||
| Total output power | 63.75W Max | ||
